#include <mapping.h>

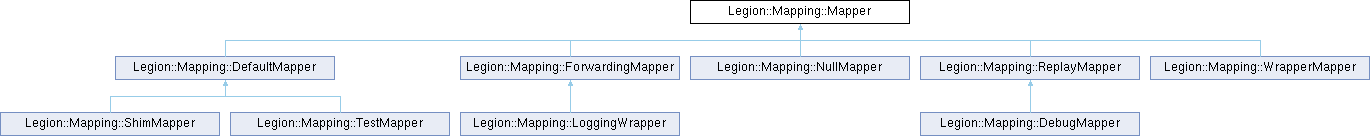

Inheritance diagram for Legion::Mapping::Mapper:

Classes
struct	AcquireProfilingInfo

struct	CloseProfilingInfo

struct	ContextConfigOutput

struct	CopyProfilingInfo

struct	CreateCloseTemporaryInput

struct	CreateCloseTemporaryOutput

struct	CreateCopyTemporaryInput

struct	CreateCopyTemporaryOutput

struct	CreateInlineTemporaryInput

struct	CreateInlineTemporaryOutput

struct	CreatePartitionTemporaryInput

struct	CreatePartitionTemporaryOutput

struct	CreateReleaseTemporaryInput

struct	CreateReleaseTemporaryOutput

struct	CreateTaskTemporaryInput

struct	CreateTaskTemporaryOutput

struct	FutureMapReductionInput

struct	FutureMapReductionOutput

struct	InlineProfilingInfo

struct	MapAcquireInput

struct	MapAcquireOutput

struct	MapCloseInput

struct	MapCloseOutput

struct	MapCopyInput

struct	MapCopyOutput

struct	MapDataflowGraphInput

struct	MapDataflowGraphOutput

struct	MapInlineInput

struct	MapInlineOutput

struct	MapMustEpochInput

struct	MapMustEpochOutput

struct	MapPartitionInput

struct	MapPartitionOutput

struct	MapperMessage

struct	MapperTaskResult

struct	MappingConstraint

struct	MapReleaseInput

struct	MapReleaseOutput

struct	MapReplicateTaskOutput

struct	MapTaskInput

struct	MapTaskOutput

struct	MemoizeInput

struct	MemoizeOutput

struct	MustEpochShardingFunctorOutput

struct	PartitionProfilingInfo

struct	PostMapInput

struct	PostMapOutput

struct	PremapTaskInput

struct	PremapTaskOutput

struct	ReleaseProfilingInfo

struct	ReplicateTaskInput

struct	ReplicateTaskOutput

struct	SelectCloseSrcInput

struct	SelectCloseSrcOutput

struct	SelectCopySrcInput

struct	SelectCopySrcOutput

struct	SelectInlineSrcInput

struct	SelectInlineSrcOutput

struct	SelectMappingInput

struct	SelectMappingOutput

struct	SelectPartitionProjectionInput

struct	SelectPartitionProjectionOutput

struct	SelectPartitionSrcInput

struct	SelectPartitionSrcOutput

struct	SelectReleaseSrcInput

struct	SelectReleaseSrcOutput

struct	SelectShardingFunctorInput

struct	SelectShardingFunctorOutput

struct	SelectStealingInput

struct	SelectStealingOutput

struct	SelectTaskSrcInput

struct	SelectTaskSrcOutput

struct	SelectTunableInput

struct	SelectTunableOutput

struct	SelectVariantInput

struct	SelectVariantOutput

struct	SliceTaskInput

struct	SliceTaskOutput

struct	SpeculativeOutput

struct	StealRequestInput

struct	StealRequestOutput

struct	TaskOptions

struct	TaskProfilingInfo

struct	TaskSlice

Public Types
enum	MapperSyncModel { CONCURRENT_MAPPER_MODEL , SERIALIZED_REENTRANT_MAPPER_MODEL , SERIALIZED_NON_REENTRANT_MAPPER_MODEL }

Public Member Functions
	Mapper (MapperRuntime *rt)

virtual const char *	get_mapper_name (void) const =0

virtual MapperSyncModel	get_mapper_sync_model (void) const =0

virtual bool	request_valid_instances (void) const

virtual void	select_task_options (MapperContext ctx, const Task &task, TaskOptions &output)=0

virtual void	premap_task (MapperContext ctx, const Task &task, const PremapTaskInput &input, PremapTaskOutput &output)=0

virtual void	slice_task (MapperContext ctx, const Task &task, const SliceTaskInput &input, SliceTaskOutput &output)=0

virtual void	map_task (MapperContext ctx, const Task &task, const MapTaskInput &input, MapTaskOutput &output)=0

virtual void	replicate_task (MapperContext ctx, const Task &task, const ReplicateTaskInput &input, ReplicateTaskOutput &output)=0

virtual void	select_task_variant (MapperContext ctx, const Task &task, const SelectVariantInput &input, SelectVariantOutput &output)=0

virtual void	postmap_task (MapperContext ctx, const Task &task, const PostMapInput &input, PostMapOutput &output)=0

virtual void	select_task_sources (MapperContext ctx, const Task &task, const SelectTaskSrcInput &input, SelectTaskSrcOutput &output)=0

virtual void	report_profiling (MapperContext ctx, const Task &task, const TaskProfilingInfo &input)=0

virtual void	select_sharding_functor (MapperContext ctx, const Task &task, const SelectShardingFunctorInput &input, SelectShardingFunctorOutput &output)=0

virtual void	map_inline (MapperContext ctx, const InlineMapping &inline_op, const MapInlineInput &input, MapInlineOutput &output)=0

virtual void	select_inline_sources (MapperContext ctx, const InlineMapping &inline_op, const SelectInlineSrcInput &input, SelectInlineSrcOutput &output)=0

virtual void	report_profiling (MapperContext ctx, const InlineMapping &inline_op, const InlineProfilingInfo &input)=0

virtual void	map_copy (MapperContext ctx, const Copy &copy, const MapCopyInput &input, MapCopyOutput &output)=0

virtual void	select_copy_sources (MapperContext ctx, const Copy &copy, const SelectCopySrcInput &input, SelectCopySrcOutput &output)=0

virtual void	report_profiling (MapperContext ctx, const Copy &copy, const CopyProfilingInfo &input)=0

virtual void	select_sharding_functor (MapperContext ctx, const Copy &copy, const SelectShardingFunctorInput &input, SelectShardingFunctorOutput &output)=0

virtual void	select_close_sources (MapperContext ctx, const Close &close, const SelectCloseSrcInput &input, SelectCloseSrcOutput &output)=0

virtual void	report_profiling (MapperContext ctx, const Close &close, const CloseProfilingInfo &input)=0

virtual void	select_sharding_functor (MapperContext ctx, const Close &close, const SelectShardingFunctorInput &input, SelectShardingFunctorOutput &output)=0

virtual void	map_acquire (MapperContext ctx, const Acquire &acquire, const MapAcquireInput &input, MapAcquireOutput &output)=0

virtual void	report_profiling (MapperContext ctx, const Acquire &acquire, const AcquireProfilingInfo &input)=0

virtual void	select_sharding_functor (MapperContext ctx, const Acquire &acquire, const SelectShardingFunctorInput &input, SelectShardingFunctorOutput &output)=0

virtual void	map_release (MapperContext ctx, const Release &release, const MapReleaseInput &input, MapReleaseOutput &output)=0

virtual void	select_release_sources (MapperContext ctx, const Release &release, const SelectReleaseSrcInput &input, SelectReleaseSrcOutput &output)=0

virtual void	report_profiling (MapperContext ctx, const Release &release, const ReleaseProfilingInfo &input)=0

virtual void	select_sharding_functor (MapperContext ctx, const Release &release, const SelectShardingFunctorInput &input, SelectShardingFunctorOutput &output)=0

virtual void	select_partition_projection (MapperContext ctx, const Partition &partition, const SelectPartitionProjectionInput &input, SelectPartitionProjectionOutput &output)=0

virtual void	map_partition (MapperContext ctx, const Partition &partition, const MapPartitionInput &input, MapPartitionOutput &output)=0

virtual void	select_partition_sources (MapperContext ctx, const Partition &partition, const SelectPartitionSrcInput &input, SelectPartitionSrcOutput &output)=0

virtual void	report_profiling (MapperContext ctx, const Partition &partition, const PartitionProfilingInfo &input)=0

virtual void	select_sharding_functor (MapperContext ctx, const Partition &partition, const SelectShardingFunctorInput &input, SelectShardingFunctorOutput &output)=0

virtual void	select_sharding_functor (MapperContext ctx, const Fill &fill, const SelectShardingFunctorInput &input, SelectShardingFunctorOutput &output)=0

virtual void	map_future_map_reduction (MapperContext ctx, const FutureMapReductionInput &input, FutureMapReductionOutput &output)

virtual void	configure_context (MapperContext ctx, const Task &task, ContextConfigOutput &output)=0

virtual void	select_tunable_value (MapperContext ctx, const Task &task, const SelectTunableInput &input, SelectTunableOutput &output)=0

virtual void	select_sharding_functor (MapperContext ctx, const MustEpoch &epoch, const SelectShardingFunctorInput &input, MustEpochShardingFunctorOutput &output)=0

virtual void	map_must_epoch (MapperContext ctx, const MapMustEpochInput &input, MapMustEpochOutput &output)=0

virtual void	map_dataflow_graph (MapperContext ctx, const MapDataflowGraphInput &input, MapDataflowGraphOutput &output)=0

virtual void	memoize_operation (MapperContext ctx, const Mappable &mappable, const MemoizeInput &input, MemoizeOutput &output)=0

virtual void	select_tasks_to_map (MapperContext ctx, const SelectMappingInput &input, SelectMappingOutput &output)=0

virtual void	select_steal_targets (MapperContext ctx, const SelectStealingInput &input, SelectStealingOutput &output)=0

virtual void	permit_steal_request (MapperContext ctx, const StealRequestInput &input, StealRequestOutput &output)=0

virtual void	handle_message (MapperContext ctx, const MapperMessage &message)=0

virtual void	handle_task_result (MapperContext ctx, const MapperTaskResult &result)=0

virtual void	handle_instance_collection (const MapperContext ctx, const PhysicalInstance &inst)

Public Attributes
MapperRuntime *const	runtime

Detailed Description

This class is a pure virtual class that defines the mapper interface. Every mapper must be derived from this class and implement all of the virtual methods declared in this class.

Member Enumeration Documentation

◆ MapperSyncModel

enum Legion::Mapping::Mapper::MapperSyncModel

Get Mapper Synchronization Model

Specify the mapper synchronization model. The concurrent mapper model will alternatively allow mapper calls to be performed at the same time and will rely on the mapper to lock itself to protect access to shared data. If the mapper is locked when performing a utility call, it may be automatically unlocked and locked around the utility call. The serialized model will guarantee that all mapper calls are performed atomically with respect to each other unless they perform a utility call when the mapper has indicated that it is safe to permit re-entrant mapper call(s) in the process of performing the utility call. The reentrant version of the serialized mapper model will default to allowing reentrant calls to the mapper context. The non-reentrant version will default to not allowing reentrant calls.

Member Function Documentation

◆ get_mapper_name()

virtual const char * Legion::Mapping::Mapper::get_mapper_name ( void ) const

pure virtual

Get Mapper Name

Specify a name that the runtime can use for referring to this mapper. This will primarily be used for providing helpful error messages so semantically meaningful names are encouraged. This mapper call must be immutable as it may be made before the synchronization model has been chosen.

Implemented in Legion::Mapping::ForwardingMapper, Legion::Mapping::DefaultMapper, Legion::Mapping::LoggingWrapper, Legion::Mapping::NullMapper, Legion::Mapping::ReplayMapper, and Legion::Mapping::WrapperMapper.

◆ handle_instance_collection()

virtual void Legion::Mapping::Mapper::handle_instance_collection	(	const MapperContext	ctx,
		const PhysicalInstance &	inst
	)

inlinevirtual

Handle Instance Collection

If a mapper successfully subscribed to an instance then it will receive this callback from the runtime when the instance has been collected by the garbage collector.

Reimplemented in Legion::Mapping::NullMapper.

◆ request_valid_instances()

virtual bool Legion::Mapping::Mapper::request_valid_instances ( void ) const

inlinevirtual

Request Valid Instances

Indicate whether the runtime should populate the valid instances as inputs for mapping operations. This will control the setting for all operations that are not tasks. For tasks, this will just set the initial value of 'valid_instances' in the select_task_options struct as we give mappers more control over needing valid inputs for tasks than generic operations at the moment. We provide a default implementation of this method because older versions of the runtime would always fill in this data structure, however, we now allow mappers to disable this in order to reduce the cost of physical analysis done for mapping operations.

Reimplemented in Legion::Mapping::ForwardingMapper.

◆ select_sharding_functor() [1/6]

virtual void Legion::Mapping::Mapper::select_sharding_functor	(	MapperContext	ctx,
		const Acquire &	acquire,
		const SelectShardingFunctorInput &	input,
		SelectShardingFunctorOutput &	output
	)

pure virtual

Select Sharding Functor

This mapper call is invoked whenever the enclosing parent task for the acquire being launched has been control replicated and it's up to the mapper for this task to pick a sharding functor to determine which shard will own the point(s) of the acquire . The mapper must return the same sharding functor for all instances of the acquire. The runtime will verify this in debug mode but not in release mode.

Implemented in Legion::Mapping::DefaultMapper, Legion::Mapping::ForwardingMapper, Legion::Mapping::LoggingWrapper, Legion::Mapping::NullMapper, and Legion::Mapping::ReplayMapper.

◆ select_sharding_functor() [2/6]

virtual void Legion::Mapping::Mapper::select_sharding_functor	(	MapperContext	ctx,
		const Close &	close,
		const SelectShardingFunctorInput &	input,
		SelectShardingFunctorOutput &	output
	)

pure virtual

Select Sharding Functor

This mapper call is invoked whenever the enclosing parent task for the close being launched has been control replicated and it's up to the mapper for this task to pick a sharding functor to determine which shard will own the point(s) of the close. The mapper must return the same sharding functor for all instances of the close. The runtime will verify this in debug mode but not in release mode.

Implemented in Legion::Mapping::DefaultMapper, Legion::Mapping::ForwardingMapper, Legion::Mapping::LoggingWrapper, Legion::Mapping::NullMapper, and Legion::Mapping::ReplayMapper.

◆ select_sharding_functor() [3/6]

virtual void Legion::Mapping::Mapper::select_sharding_functor	(	MapperContext	ctx,
		const Copy &	copy,
		const SelectShardingFunctorInput &	input,
		SelectShardingFunctorOutput &	output
	)

pure virtual

Select Sharding Functor

This mapper call is invoked whenever the enclosing parent task for the copy being launched has been control replicated and it's up to the mapper for this copy to pick a sharding functor to determine which shard will own the point(s) of the copy. The mapper must return the same sharding functor for all instances of the copy. The runtime will verify this in debug mode but not in release mode.

Implemented in Legion::Mapping::DefaultMapper, Legion::Mapping::ForwardingMapper, Legion::Mapping::LoggingWrapper, Legion::Mapping::LoggingWrapper, Legion::Mapping::NullMapper, and Legion::Mapping::ReplayMapper.

◆ select_sharding_functor() [4/6]

virtual void Legion::Mapping::Mapper::select_sharding_functor	(	MapperContext	ctx,
		const Fill &	fill,
		const SelectShardingFunctorInput &	input,
		SelectShardingFunctorOutput &	output
	)

pure virtual

Select Sharding Functor

This mapper call is invoked whenever the enclosing parent task for the fill being launched has been control replicated and it's up to the mapper for this task to pick a sharding functor to determine which shard will own the points of the fill. The mapper must return the same sharding functor for all instances of the fill. The runtime will verify this in debug mode but not in release mode.

Implemented in Legion::Mapping::DefaultMapper, Legion::Mapping::ForwardingMapper, Legion::Mapping::LoggingWrapper, Legion::Mapping::NullMapper, and Legion::Mapping::ReplayMapper.

◆ select_sharding_functor() [5/6]

virtual void Legion::Mapping::Mapper::select_sharding_functor	(	MapperContext	ctx,
		const Partition &	partition,
		const SelectShardingFunctorInput &	input,
		SelectShardingFunctorOutput &	output
	)

pure virtual

Select Sharding Functor

This mapper call is invoked whenever the enclosing parent task for the partition being launched has been control replicated and it's up to the mapper for this task to pick a sharding functor to determine which shard will own the point(s) of the partition. The mapper must return the same sharding functor for all instances of the partition. The runtime will verify this in debug mode but not in release mode.

Implemented in Legion::Mapping::DefaultMapper, Legion::Mapping::ForwardingMapper, Legion::Mapping::LoggingWrapper, Legion::Mapping::NullMapper, and Legion::Mapping::ReplayMapper.

◆ select_sharding_functor() [6/6]

virtual void Legion::Mapping::Mapper::select_sharding_functor	(	MapperContext	ctx,
		const Release &	release,
		const SelectShardingFunctorInput &	input,
		SelectShardingFunctorOutput &	output
	)

pure virtual

Select Sharding Functor

This mapper call is invoked whenever the enclosing parent task for the release being launched has been control replicated and it's up to the mapper for this task to pick a sharding functor to determine which shard will own the point(s) of the release. The mapper must return the same sharding functor for all instances of the release. The runtime will verify this in debug mode but not in release mode.

Implemented in Legion::Mapping::DefaultMapper, Legion::Mapping::ForwardingMapper, Legion::Mapping::LoggingWrapper, Legion::Mapping::NullMapper, and Legion::Mapping::ReplayMapper.

The documentation for this class was generated from the following file:

legion/api/mapping.h
